    Three Phase Network Multifunctional Power Meter IP52 / 0.05Hz PMC180N

    Ask Lasest Price
    Brand Name : Kingsine
    Certification : ISO9001,CE
    Model Number : PMC180N
    Delivery Time : 15 working days
    Payment Terms : T/T in advance ,L/C
    Supply Ability : 5000PCS/Month
    • Product Details
    • Company Profile

    Three Phase Network Multifunctional Power Meter IP52 / 0.05Hz PMC180N


    Three-Phase Network Multifunctional Power Meter IP52 / 0.05Hz PMC180N


    Single / Three Phase AC System
    220 voltage
    Power Quality Analysis

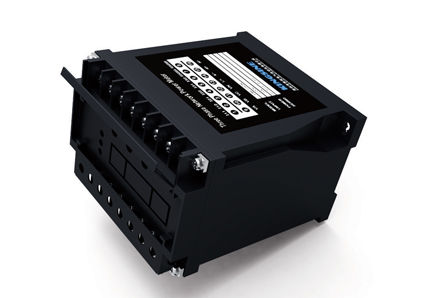

    PMC180N three-phase network power meter

    • Complete power parameter measurement, energy measurement, 31 order voltage / current harmonic analysis.

    • Threshold Crossing Alert for power parameter, online monitoring.

    • Multifunctional meter without LCD operation panel, optional transducer function output.

    • Support MODBUS-RTU standard protocol, RS485 communication.


    Overview


    PMC180N three-phase network power meter is a multifunctional meter without LCD operation panel. It adopts low power dissipation microprocessor, can measuring complete power parameter, energy measurement, and 31 order voltage / current harmonic analysis. It has the optional Analog output port, can match the demand of transducer function. It has RS-485 communication port and could be easily integrated to any intelligent power distribution system. PMC180N has the practical function, easy use, easy maintenance. It can use to monitor and control of the on-site equipment, supply the measuring & testing support to the power application specialist, supply the data base to the SCADA and Smart Grid, provide scientific basis for intelligent energy management.


    Function Features


    Function Features

    PMC180Z

    PMC180C

    PMC180P

    PMC180U

    PMC180 I

    PMC180N

    Instantaneous real virtual value

    Current

    Single phase & neutral line

    Voltage

    Line/line & Phase/Line

    Frequency

    Active power

    Three-phase & single phase

    Reactive power

    Three phase & single phase

    Power factor

    Three-phase & single phase

    Energy

    Active energy

    Reactive energy

    Power Quality

    Harmonic distortion

    Current & voltage

    31 order harmonic analysis

    Voltage & current

    Communication

    RS485 /MODBUS protocol

    Display

    LED display

    Other

    2-channel DI

    2-channel DO

    1 channel AO:4-20Ma

    2-channel limits alarm

    Support program online upgrade

    Technical parameter


    Electrical Characteristics

    Measurement Type

    Three-phase three-wire AC system

    Three-phase four-wire AC system

    Sampling rate: 64 times per cysle

    Data refresh rate

    1S

    Measurement Accuracy

    Current

    0.5%

    Voltage

    0.5%

    Power

    0.5%

    Frequency

    0.05Hz

    Active Energy

    1.0%

    Reactive Energy

    2.0%

    AO

    1%

    Input voltage characteristics

    Measuring voltage

    Allowed overload

    3 X 220/380V(connected directly)

    3 X 57.7/100V(connected by CT)

    Input impedance

    1.2 times / continuous

    Measuring voltage

    1.8MΩ

    Input current characteristic

    Measuring current

    5A or 1A (connected by CT)

    Allowed overload

    1.2 times / continuous

    Input impedance

    <0.1Ω

    4-20mA DC output

    Open circuit voltage

    15VDC

    Load capacity

    ≤500Ω

    Isolated voltage

    2KV

    Working power supply

    AC

    85~265 VAC/45-65Hz

    DC

    100~300 VDC

    Power dissipation

    < 3W

    Mechanical properties

    Weight

    0.5kg

    IP protection grade

    IP52

    Size

    110 X 75 X 72 mm or 110 X 75 X 120 mm

    Operating temperature

    -40~70℃

    Storage Temperature

    -50~85℃

    Relative Humidity

    5% - 90%RH, No condensation

    EMC

    Electrostatic discharge interference

    IEC 61000-4-2, Level 4

    Group of anti-fast transient pulse

    IEC 61000-4-4, Level 4

    Anti-impact

    IEC 61000-4-5, Level 3

    Anti-frequency magnetic field

    IEC 61000-4-8, Level 3

    Electrical insulation performance

    Insulation resistance

    GB/T13729, >50MΩ

    Frequency withstand voltage

    GB/T13729, AC 2KV 50Hz /1min

    Impulse voltage

    GB/T13729, 5KV, 1.2/50us
