Able to test the numerical IEDs relays according IEC61850-9-1, IEC61850-9-2, IEC60044-7/8 etc

• Advanced product design concept, exclusive plug and play modularization design

• Totally complied IEC61850

• Fiber board selectable, Each fiber board can provide 4 channels fiber port. 4 / 8 / 12 / 16 fiber port optional configuration

• Able to subｓｃｒｉｐｔions & simulations SMV and GOOSE signals, each SMV ability configure up to 64 sampling channels, satisfy each customer’s different selection of testing requires

• 13 independent low-level channels output

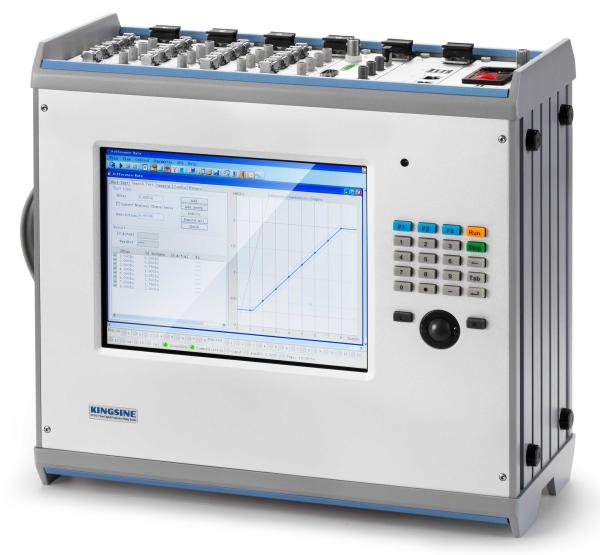

• Inbuilt 9.7” true color TFT LCD display with 1024×768 resolution, keyboard and mouse, easy operation for user and provide excellent vision feeling for intelligence substation

• 8 pairs binary inputs and 4 pairs binary outputs

Characteristics

• Provide 16 pairs LC fiber port, can receive/send 16 groups IEC61850-9-1, IEC61820-9-2 frame form sampling value, each port can map up to 64 SV channels, and contain fiber power test function;

• Provide 16 ST output fiber ports and 2 ST reception fiber port, output 16 group standard FT3 form sampling value message which comply with IEC60044-7/8, receive 2 group standard FT3 form sampling value message which comply IEC60044-7/8;

• Subscribe and simulation GOOSE message;

• 13 channels low-level signals output, each channels from 0~8 V ac/dc;

• Simulate IED publish GOOSE initiatively when power-on in order to avoid tested device lock-out which cause by link interruption after testing stop injection;

• Auto-analyze SCL (SCD, ICD, CID, NPI) format file, realize auto configuration of sampling value and GOOSE message, save or export as a configuration file, convenient for testing;

• Auto-search protection device from MX, fiber digital signal from Intelligent unit, realize auto configuration function of sampling value and GOOSE message;

• Simulate unusual states (lose frame, mis-sequence, quality unusual, message resend, data unusual, out of step);

• Inbuilt GPS module, fiber IRIG-B code synchronization and IEEE1588 time synchronization function.
