    Protection Relay Secondary Injection Test Set K68i

    Ask Lasest Price
    Brand Name : Kingsine
    Certification : ISO9001,CE
    Delivery Time : 15 working days
    Payment Terms : T/T in advance ,L/C
    Supply Ability : 50 sets/ month
    • Product Details
    • Company Profile

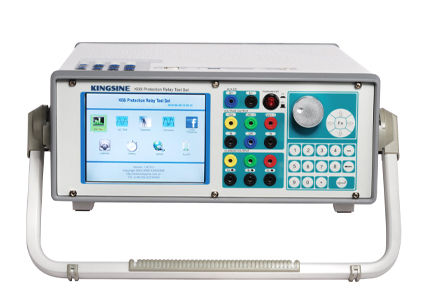

    Protection Relay Secondary Injection Test Set K68i

    Protection Relay Secondary Injection Test Set K68i


    1. Easy test


    2. Operation menu, Simple operation


    3. Power:1000VA

    4. With self housing-grounding detecting function

    5. Max AC voltage can reach 300V each phase

    6. All-in-one design relay tester with 6.4 inches LCD display


    The most-effective solution for relay testing!


    With all in one design, able to test most of Relays by manual or automation!


    Software Features


    1. Able to test most of Relays by manual or automation: Voltage relays, Current relays, Frequency relays,


    Power relays, Impedance relays, Harmonic relays, Distance relays etc;


    2. With self housing-grounding-detecting function, the software interface can show whether the housing


    well grounding or not, effectively ensure the safety of testing.


    Hardware Features


    1. All-in-one design relay tester with 6.4 inches LCD display;


    2. 4 Phase AC Voltage Sauce and 3-phase AC current sauce can be output together, even the Range,


    Phase, Frequency can be set independently;


    3. Max AC voltage can reach 300V each phase, Offer independent Aux. DC to tested devices, 0 ~ 300


    V/0.6A (Poleless and adjustable);


    4. Offer different type of computer port: USB port, RJ45 port, VGA Video Port , USB / RJ45 ports


    convenient for data transfer, VGA Video Port can connect to projector and easy for study and training;


    5. Super long life Rotary encoder + Functional keyboard.


    Technical Data of K68


    Voltage generators

    Setting

    Range

    4-phase AC (L-N)

    4 x 0 ... 300V

    2-phase AC (L-L)

    2x 0 ...600 V

    Power

    4-phase AC (L-N)

    4 x110VA, at 0 ...300 V

    2-phase AC (L-L)

    2 x 220VA, at 0 ...600 V

    Accuracy

    <0.07% reading + 0.03% range guaranteed at 0-300V

    <0.04% reading + 0.01% range typical at 0-300V

    Resolution

    1mV

    Current generators

    Setting

    Range

    3-phase AC (L-N)

    3 x 0 ... 35 A

    1-phase AC (3L-N)

    1 x 0 ...105 A

    Power

    3-phase AC (L-N)

    1x 450VA, at 0 ... 35A

    1-phase AC (3L-N)

    1 x 1000VA, at 0 ...105A

    Accuracy

    <0.14% reading + 0.06% range guaranteed at 0-35A

    <0.05% reading + 0.02% range typical at 0-35A

    Resolution

    1mA

    Generators, general

    Frequency

    Range

    0 ... 1000 Hz

    Accuracy / drift

    Error < 0.001Hz at 10 ... 65Hz,

    Error < 0.01Hz at 65Hz...450Hz

    Error < 0.02Hz at 450Hz...1000Hz

    Resolution

    0.001Hz

    Phase

    Range

    - 360° ... +360°

    Accuracy / drift

    Error < 0.2 °

    Resolution

    0.1°

    Time

    Range

    0 ... 999, 999.999s

    Accuracy / drift

    Error<1ms

    DC generators

    Voltage ranges

    0 ... 300V/180VA

    Current ranges

    0 ... 20A/300W

    Accuracy

    Error<0.1% reading + 0.1% range guaranteed at 0…300 V;

    Error <0.1% reading + 0.1% range guaranteed at 0...20 A;

    Resolution

    1mA; 1 mV

    Aux DC Supply

    Range

    0...300V/0.6A

    Binary inputs

    Number

    8 pairs

    Compatible Voltage

    10V ... 250V DC

    Binary outputs

    Number

    4 Pairs

    Capacity

    250V/3A (AC/DC)

    Synchronization

    Synchronization mode

    GPS

    Harmonic

    Harmonic overlap times

    2 ... 9 times

    Power supply

    Nominal input voltage

    220V±20% VAC, 1-phase

    Power

    1000VA

    Nominal frequency

    50±10% Hz

    Environmental conditions

    Operation temperature

    -5°C ... 55 °C

    Storage temperature

    -20°C ... 75 °C

    Humidity range

    5% ... 90 %, non-condensing

    Weight

    20KG

    Dimensions

    460(D)×140 (W)×360 (H) mm

    Interface

    RJ45 , USB, VGA


    Main Series Relay Tester List


    K68 series

    K68

    3x35A, 4x130V, 5 function modules, Ethernet, TFT LCD, WinCE

    K68i

    3x35A, 4x300V, 5 function modules, Ethernet, TFT LCD, WinCE


    Major Functions


    Items

    IEEE(R) No.

    Overcurrent relays

    51/76

    Inverse time overcurrent relays

    50

    Undercurrent relays

    37

    Ground fault relays

    50

    Directional overcurrent relays

    67

    Directional ground fault relays

    67N

    Overvoltage relays

    59

    Undervoltage relays

    27

    Directional voltage relays

    91

    Directional power relays

    32

    Power factor relays

    55

    Distance protection equipment (phase by phase)

    21

    Automatic reclosing devices

    79

    Tripping relays

    94

    Voltage regulating relays

    Overimpedance relays, Z>

    Underimpedance relays, Z

    Time-delay relays
