    KA30 KA60 Voltage And Current Amplifier

    KA30 KA60 Voltage And Current Amplifier

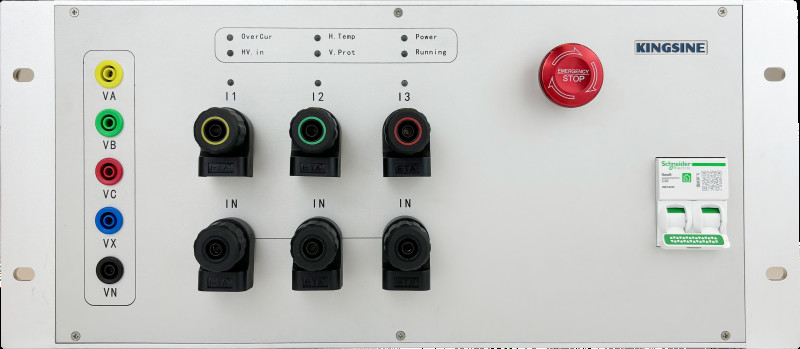

    KA30 / KA60 is high accuracy, high power, Panel-mounted type real time simulation power amplifier with four-phase voltage and three-phase current;

    Each output channels are independent and simultaneous control of magnitude, Phase angle and frequency values;

    Able to inject DC, AC sine wave and up to 5KHz signals;

    High burdens ability, real time hardware in the loop simulation.


    Basic Functions


    4 channels voltage and 3 channels current. All channels magnitude,Frequency,Phase can be adjust separately.
    High linearity, High step response, whole accuracy <0.2%.
    Over-heat, Over-load self-protections.
    Convenient pause/run function.
    19 inch standard chassis panel-mounted design,small dimension. Easy to Centralized panel.

    Specifications:


    Voltage OutputKA30 / KA60KA30i / KA60i
    Voltage Range4 × 0~130V RMS4 × 0~300V RMS
    Power>65VA / Phase>150VA / Phase
    Gain18V/V40V/V
    Voltage Output Accuracy<±0.2%
    Rate Vibration of Load Change<±0.2% (1~30VA Power output, 57.7V)
    Input Impedance>10kΩ
    Frequency RangeDC-5KHz ±1dB
    Harmonic Distortion Ratio<0.2%
    Input / Output Delay<20μS (50Hz)
    Step Response<20μS
    Input Signal Level0~7.5V RMS

    Current OutputKA30 / KA30iKA60 / KA60i
    Current Range3 × 0~30A RMS3 × 0~60A RMS
    Power>450VA / Phase>800VA / Phase
    Gain4A/V8A/V
    Current Output Accuracy<±0.2%
    Rate Vibration of Load Change<±0.2% (0~2Ω, 5A)
    Input Impedance>10kΩ
    Frequency RangeDC-5KHz ±1dB
    Harmonic Distortion Ratio<0.2%
    Input / Output Delay<20μS (50Hz)
    Step Response<20μS
    Input Signal Level0~7.5V RMS

    PhasePhase Accuracy<0.2°
    Power supplyAC Voltage Input220V±10%
    Power2000 VA
    Frequency50Hz / 60Hz
    OthersTemperature0℃~ 50℃
    Humidity≤95%, no condensation
    Weight<20 kg
    Dimension135mm×445mm×400mm, 3U 19inches

    Order Information

    ModelPart No.Descriptions
    KA302050033 × 0~30A, 4 × 0~130V
    KA30i2050053 × 0~30A, 4 × 0~300V
    KA602050043 × 0~60A, 4 × 0~130V
    KA60i2050063 × 0~60A, 4 × 0~300V
