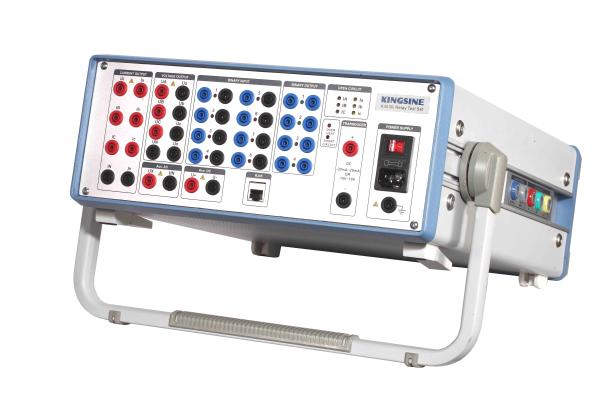

    K3063i Universal Protection Relay Test Set 10 Channels Outputs

    Ask Lasest Price
    Brand Name : Kingsine
    Model Number : K3063i
    Certification : ISO9001,CE
    Price : Negotiation
    Payment Terms : T/T in advance ,L/C
    Supply Ability : 50 sets/ month
    Delivery Time : 15 working days
    • Product Details
    • Company Profile

    K3063i Universal Protection Relay Test Set 10 Channels Outputs

    Description

    Basic Functions
    Universal Relay Test Applications
    10 Channels (6x35A & 4x310V) outputs, Each output channels are independent and simultaneous control of magnitude, Phase angle and frequency values, able to inject DC, AC sine wave and up to 60x harmonics.
    Variable battery simulator, DC 0-350V, 140Watts max.
    Transient play back up to 3KHz
    Fully function KRT software testing modules
    Graphical test modules and templates for testing of various relays
    Quick relay testing facility in Manual mode
    Shot/Search/Check, Point & Click testing
    RIO/XRIO import & export facility
    Switch on to fault test(SOTF)
    Power system model for dynamic testing
    Online Vector display
    Automatic test results assume
    Automatic test report creation
    Inbuilt GPS sync end-to-end testing
    Anti-clipping detect, Wrong wiring connect alarm and self-protect, overload and overheat protection
    3-Years guarantee of free repair and life-long maintenance
    Lightweight, <19.5Kg
    Free software upgrade

    Advance Feature
    Energy meter calibration (Mechanical & Electronic meters)
    Type of relays can be tested:
    Items ANSI® No.
    Distance protection relay 21
    Synchronising or synchronism-check relays 25
    Undervoltage relays 27
    Directional Power relays 32
    Undercurrent or underpower relays 37
    Negative sequence overcurrent relays 46
    Overcurrent/ground fault relays 50
    Inverse time overcurrent/ground fault relays 51
    Power factor relays 55
    Overvoltage relays 59
    Voltage or current balance relays 60
    Directional overcurrent relays 67
    Directional ground fault relays 67N
    DC overcurrent relays 76
    Phase-angle measuring or out-of-step protection relays 78
    Automatic reclosing devices 79
    Frequency relays 81
    Motor overload protection relays 86
    Differential protection relays 87
    Directional voltage relays 91
    Voltage and power directional relays 92
    Tripping relays 94
    Voltage regulating relays
    Overimpedance relays, Z>
    Underimpedance relays, Z
    Time-delay relays

    Specifications

    Voltage Outputs
    Output Range & Power 4×310 V ac (L-N) 124 VA max each
    350 V dc (L-N) 140 W max each
    Accuracy <0.02%Rd+0.005Rg Typ.
    <0.05%Rd+0.01Rg Guar.
    ±10mV @ <5V dc
    ±0.5% @ ≥5V dc
    Voltage Range Range I : 30V
    Range II : 310V
    Automatic Range
    DC Offset <10mV Typ./ <60mV Guar
    Resolution 1mV
    Distortion <0.015%Typ. / <0.05% Guar.
    Current Outputs
    Output Range & Power 6×35A ac (L-N) 450 VA max each
    3×70A ac (2L-N) 850 VA max each
    100A ac (6L-N) 1200 VA max
    3×20A dc (L-N) 300W max each
    Accuracy <0.03%Rd+0.02Rg Typ.
    <0.1%Rd+0.05Rg Guar.
    ±5mA @ <1A dc
    ±0.5% @ ≥1A dc
    Current Range Range I: 3A
    Range II: 35A
    Automatic Range
    DC Offset <3mA Typ./ <10mA Guar
    Resolution 1mA
    Distortion <0.025%Typ. / <0.07% Guar.
    Frequency & Phase Angle
    Frequency Range DC~1KHz, 3KHz transient
    Frequency Accuracy ±0.5ppm
    Frequency Resolution 0.001 Hz
    Phase Range -360°~360°
    Phase Accuracy <0.02° Typ. / <0.1° Guar. 50/60Hz
    Phase Resolution 0.001°
    Aux. DC Voltage Source (Battery simulator)
    Range 0~350V @ 140W max
    Accuracy 0.5%Rg Guar.
    Binary Input
    Quantity 8pairs
    Type wet/dry, up to 300Vdc max input
    Time resolution 10us
    Sampling Rate 10KHz
    Debounce time 0~25ms (Software Controlled)
    Time range Infinite
    Time errors ±1ms @ 1s, ±0.1% @ >1s
    Galvanic isolation Isolated each pairs
    Binary Output (Relay Type)
    Quantity 4pairs
    Type Potential free relay contacts, software controlled
    Break Capacity AC Vmax: 400Vac / Imax:8A / Pmax:2500VA
    Break Capacity DC Vmax: 300Vdc / Imax:5A / Pmax:150W
    Binary Output (Semiconductor Type)
    Quantity 4pairs
    Type: Open-collector, Combination type male
    Break Capacity DC 5~15Vdc / 5mA, 10mA max
    Response time: 100us
    Synchronization
    Synchronization Mode  GPS, SMA type antenna connector
    Power supply & Environment
    Nominal Input Voltage 110V/220/230V ac, Appointed
    Permissible Input Voltage 85~264Vac, 125~350VDC, auto-protective
    Nominal Frequency 50/60Hz
    Permissible Frequency 45Hz~65Hz
    Power Consumption 1500 VA max
    Connection Type Standard AC socket 60320
    Operating Temperature -10℃~55℃
    Storage Temperature -20℃~70℃
    Humidity <95%RH, non-condensing
    Others
    PC Connection RJ45 Ethernet, 10/100M
    Grounding Terminal 4mm banana socket
    Weight 19.5 Kg
    Dimensions(W x D x H) 360×450×140(mm)

    Advance

    Additional Information (Optional Modules)
    Energy Meter Calibration Hardware is ready, to be active
    Sensor Usage Mechanical meters / Electronic meters
    Sensor Output High lever:>4.5V, Low level:<0.2V
    Pulse Input 1 pulse input port, 5Vdc high level valid only.
    Pulse Range 500KHz pulse input Max.
    Pulse Output 1 Transistor output, Open-collector, 5Vdc/5mA
    Ordering Instruction
    Model Current Outputs Voltage Outputs Optional Function
    K3066i 6×35A @ 450VA max
    3×70A @ 850VA max
    7×310V @ 90VA max Energy Meter Cal.
    K3063i 6×35A @ 450VA max
    3×70A @ 850VA max
    4×310V @ 124VA max Energy Meter Cal.
    K3030i 3×35A @ 450VA max 4×310V @ 124VA max Energy Meter Cal.
