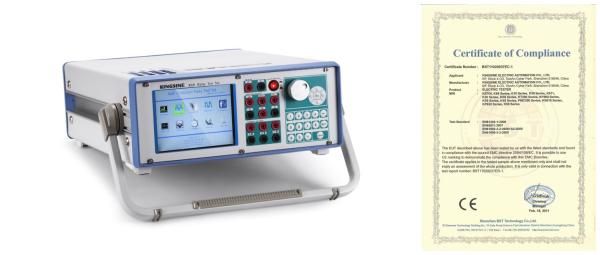

    Universal IEC61850 K68i Secondary Injection Relay Test Kit

    Ask Lasest Price
    Brand Name : Kingsine
    Model Number : K68i
    Certification : CE/ISO9001
    Price : Negotiation
    Payment Terms : L/C,T/T
    Supply Ability : 100 sets/month
    Delivery Time : 15 working days
    • Product Details
    • Company Profile

    Universal IEC61850 K68i Secondary Injection Relay Test Kit

    Universal IEC61850 K68i Secondary Injection Relay Test Kit


    Description Of Universal Secondary Injection Test Set Complying IEC61850

    It satisfies all requirements of field test.The tester can simultaneously output standard six-phase current and six-phase voltage with 35A/phase current and 300V/phase voltage. The tester can not only test traditional relays and protective devices, but also test modern microcomputer-based protective devices, especially the differential protection of transformers and automatic switching devices of stand-by power supply. Testing becomes more convenient and perfect.


    Feature Of Universal Secondary Injection Test Device Complying IEC61850

    Basic functions:

    DC test
    AC test
    Distance relay test
    Harmonic test
    Frequency test
    8 pairs binary inputs
    4 pairs binary outputs


    Advance software functions (optional for selections):

    Differential test
    State sequence test
    Time characteristic test
    Advance distance test
    Synchronizer test
    Fault recurrence (fault play back)

    Specification Of Universal Secondary Injection Test System Complying IEC61850

    Binary Input
    Quantity8pairs
    Typewet/dry, up to 300Vdc max input
    Time resolution100us
    Sampling Rate10KHz
    Debounce time0~25ms (Software Controlled)
    Time range999.999s
    Time errors±1ms @ ≤1s, ±0.1% @ >1s
    Galvanic isolationIsolated as 1,2,3,4-8 pairs
    Binary Output (Relay Type)
    Quantity4pairs
    TypePotential free relay contacts, software controlled
    Break Capacity ACVmax: 400Vac / Imax:4A / Pmax:1000VA
    Break Capacity DCVmax: 300Vdc / Imax:4A / Pmax:300W
    Synchronization
    Synchronization Mode External GPS (Optional)
    Power supply & Environment
    Nominal Input Voltage110V/220/230V ac, appointed, ±15%
    Permissible Input Voltage85~264Vac, 125~350VDC, auto-protective
    Nominal Frequency50/60Hz
    Permissible Frequency45Hz~65Hz
    Power Consumption1500 VA max
    Connection TypeStandard AC socket 60320
    Operating Temperature-10℃~55℃
    Storage Temperature-20℃~70℃
    Humidity<95%RH, non-condensing
    Others
    PC ConnectionRJ45 Ethernet, 10/100M
    Grounding Terminal4mm banana socket
    Weight20.5 Kg
    Dimensions(W x D x H)360×450×140(mm)

    Advantage Of Universal Secondary Injection Tester Complying IEC61850

    Variable battery simulator, DC 0-300V, 120Watts max.
    Quick relay testing facility in Manual mode
    Switch on to fault test(SOTF)
    GPS sync end-to-end testing
    Online Vector display
    Automatic test report creation
    Anti-clipping detect, Wrong wiring connect alarm and self-protect, overload and overheat protection

    FAQ

    Q: Can the device test the function of Synchronising or synchronism-check relays?

    A: Yes.

    Q: How about the guarantee of repair?

    A: All of our products have 3-years guarantee of free repair, and life-long maintenance.

    Q: What is your technical advantages?

    A: 7 Channels (4x300V & 3x35A) outputs, Each output channels are independent and simultaneous control of magnitude, Phase angle and frequency values, able to inject DC, AC sine wave and up to 20x harmonics.
