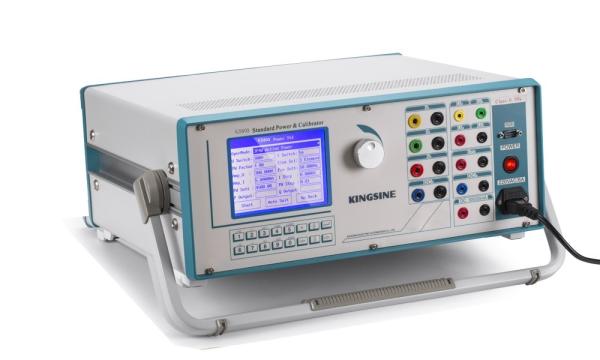

    Accuracy 0.05% KS803 Three-phase AC/Harmonic Standard Source

    Ask Lasest Price
    Brand Name : Kingsine
    Model Number : KS803
    Certification : CE/ISO9001
    Price : Negotiation
    Payment Terms : L/C,T/T
    Supply Ability : 100 sets/month
    Delivery Time : 15 working days
    • Product Details
    • Company Profile

    Accuracy 0.05% KS803 Three-phase AC/Harmonic Standard Source

    Industry Three Phase 100mA Differential Relay Testing


    Description Of Single-phase Power Reference

    Applied to Grid Corporation of measurement testing centers, power companies and power plants measured ministries, national institutions at all levels of measurement tests, also applies to the railway, petroleum, chemical industry, large-scale industrial and mining enterprises and the meter manufacturers, etc.


    Feature Of Harmonic Standard Power

    Applied to Grid Corporation of measurement testing centers, power companies and power plants measured ministries, national institutions at all levels of measurement tests, also applies to the railway, petroleum, chemical industry, large-scale industrial and mining enterprises and the meter manufacturers, etc.
    Apply to the power sector, measurement department, quality inspection departments, research institutions, universities, etc.
    Applies to other production and research & development enterprise of energy meter, power distribution terminals, power management, load control, power quality, and medium voltage reactive power compensation.
    Open communications protocol to facilitate the secondary development for RTU / FTU / Power Management Terminal / Public variable measuring the terminal factory automatic verification.
    Calibrating a variety Analog Digital meter of direct U/I instruments & frequency with DC/AC 0.05% accuracy and the corresponding class digital multimeter for quality inspection, measurement and instrumentation maintenance, parts detection
    The calibrating types of test instrument including AC-DC voltage meter, ammeter, single / three phase active and reactive power meter, phase meter, power factor meter, frequency tables, synchronized tables, etc.

    Specification Of DC Standard source

    Output & Measuring AC Voltage
    Available Ranges10V, 30V, 100V, 300V, 750V, auto-shift
    Adjustment range0~120%Rg
    Adjustment finenessRange x 0.01%
    ResolutionRange x 0.01%
    Accuracy0.05%Rg
    Stability0.01% / 1min
    Output & Measuring AC Current
    Available Ranges100mA, 1A, 5A, 10A, 25A; auto-shift
    Adjustment range0~120%Rg
    Adjustment finenessRange x 0.01%
    ResolutionRange x 0.01%
    Accuracy0.05%Rg
    Stability0.01% / 1min
    Output & Measuring AC Power
    Adjustment finenessRange x 0.01%
    ResolutionRange x 0.01%
    Accuracy0.05%Rg (Factor>0.5)
    Stability0.01% / 1min
    Output & Measuring AC Frequency
    Frequency Range45.000~65.000Hz
    Adjustment fineness0.001Hz
    Accuracy0.01%RD
    Output & Measuring AC Phase Angle
    Phase Angle Range0.00º~359.99º
    Adjustment fineness0.01º
    Resolution0.01
    Accuracy0.05º
    Output & Measuring AC Power Factor
    Output Range-1 ~ 0 ~ +1
    Measuring Accuracy0.0005
    Adjustment fineness0.0001
    Output & Measuring Harmonic
    Harmonic Setting2~31
    Harmonic Contentvoltage, current ≤30% (as against fundamental)
    Harmonic Output Accuracy0.1% (1st~19th, as against fundamental)
    0.2% (20th~31st, as against fundamental)
    Harmonic Phase0~360º, adjustable

    Advantage Of Single-phase Power Reference

    KS803 Standard Source is fully compatible with the relevant national Standards:

    JJG124-93 Verification Regulation of Ammeter, Voltmeter & Ohmmeter
    GB/T767-1999 Direct Acting Indicating Analogue Electrical Measuring Instruments & Accessories
    SD110-83 Inspection Regulation of Electrical Indicating & Measuring Instruments
    JJG440-86 Verification Regulation of Frequency Single Phase Meters
    JJG603-89 Verification Regulation of Pointer Frequency Meters

    FAQ

    Q: How about the guarantee of repair?

    A: All of our products have 3-years guarantee of free repair, and life-long maintenance.

    Q: What is your technical advantages?

    A: Open protocol for software self-programming.AC voltage sources: 3x900V@3x25VA, accuracy 0.05%.AC current sources: 3x30A@3x25VA, accuracy 0.05%.3-phase Harmonic Standard Power: 2-31x orders with 0.1 % accuracy.
