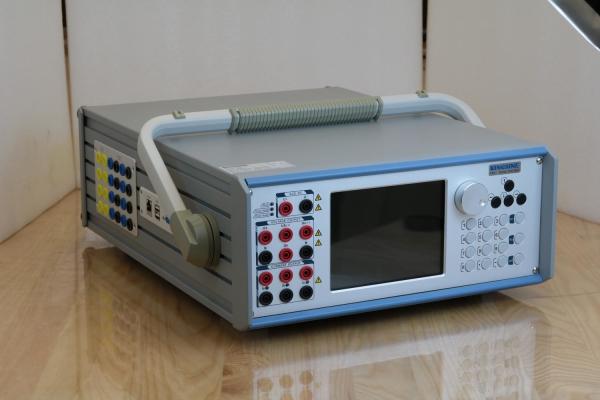

    KINGSINE Protection Relay Tester K68i

    Ask Lasest Price
    Brand Name : Kingsine
    Model Number : K68i
    Certification : CE/ISO9001
    Price : Negotiation
    Payment Terms : L/C,T/T
    Supply Ability : 100 sets/month
    Delivery Time : 15 working days
    • Product Details
    • Company Profile

    KINGSINE Protection Relay Tester K68i

    230VAc Intelligent IEC61850-9-2 Protection Relay Testing


    Description Of Secondary Current Injection Test Kit

    Relay protection microcomputer test device plays a key role in operating electricity power systems reliably and safely. It is the testing device used in professional field of microcomputer protection, relay protection, excitation measurement, fault recorder.


    Feature Of Secondary Current Injection Test Device

    7 Channels (4x300V & 3x35A) outputs, Each output channels are independent and simultaneous control of magnitude, Phase angle and frequency values, able to inject DC, AC sine wave and up to 20x harmonics.
    Variable battery simulator, DC 0-300V, 120Watts max.
    Quick relay testing facility in Manual mode
    Switch on to fault test(SOTF)
    GPS sync end-to-end testing
    Online Vector display
    Automatic test report creation
    Anti-clipping detect, Wrong wiring connect alarm and self-protect, overload and overheat protection

    Specification Of Secondary Current Injection Test Set

    Voltage Outputs
    Output Range & Power4×300 V ac (L-N)120 VA max each
    3×300 V dc (L-N)120 W max each
    Accuracy±2mV @ <2V ac
    <0.12%Rd+0.05Rg Typ. @ 2~300V ac
    <0.07%Rd+0.03Rg Guar. @ 2~300V ac
    ±10mV @ <5V dc
    ±0.5% @ ≥5V dc
    Voltage RangeRange I : 30V
    Range II : 300V
    Automatic Range
    DC Offset<10mV Typ./ <60mV Guar
    Resolution1mV
    Distortion<0.015%Typ. / <0.05% Guar.
    Current Outputs
    Output Range & Power3×35A ac (L-N)450 VA max each
    1×105A ac (3L-N)1200 VA max
    3×20A dc (L-N)300W max each
    Accuracy±1mA @ <0.5A ac
    <0.15%Rd+0.05Rg Typ. @ 0.5A~35A ac
    <0.07%Rd+0.03Rg Guar. @ 0.5A~35A ac
    ±5mA @ <1A dc
    ±0.5% @ ≥1A dc
    Current RangeRange I: 3A
    Range II: 35A
    Automatic Range
    DC Offset<3mA Typ./ <10mA Guar
    Resolution1mA
    Distortion<0.025%Typ. / <0.07% Guar.
    Frequency & Phase Angle
    Frequency RangeDC, 5~1000Hz
    Frequency Accuracy±1ppm @ 5~65Hz
    ±10ppm @ 65~450Hz
    ±20ppm @ 450~1000Hz
    Frequency Resolution0.001 Hz
    Phase Range-360°~360°
    Phase Accuracy<0.05° Typ. / <0.1° Guar. 50/60Hz
    Phase Resolution0.001°

    Advantage Of Frequency Relay Test System


    Advance software functions (optional for selections):

    Differential test
    State sequence test
    Time characteristic test
    Advance distance test
    Synchronizer test
    Fault recurrence (fault play back)

    FAQ

    Q: Can the relay protection tester show Distance relay test?

    A: Yes.

    Q: What is your technical advantages?

    A: Our products with All-in-One design, weight < 17.5kg.High Power & Accuracy with 6x35A & 4x310V analog outputs and Complying IEC61850 Sampling Value & GOOSE.

    Q: How long is the warranty period?

    A: 3-Years guarantee of free repair and life-long maintenance.
