    KINGSINE K3163i Differential Relay Testing Protection Relay Test Support IEC61850

    Ask Lasest Price
    Brand Name : KINGSINE
    Model Number : K3163i
    Certification : CE/ISO9001
    Price : Negotiation
    Payment Terms : L/C,L/C
    Supply Ability : 100 sets/month
    Delivery Time : 15 working days
    • Product Details
    • Company Profile

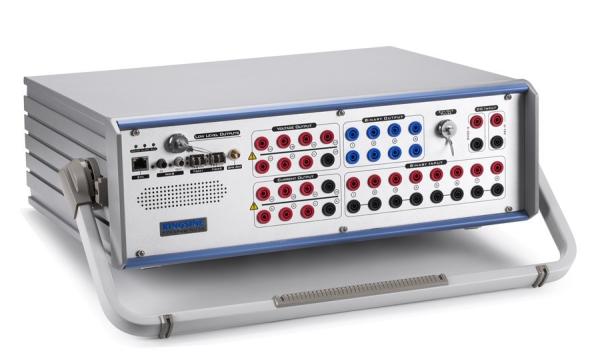

    KINGSINE K3163i Differential Relay Testing Protection Relay Test Support IEC61850

    KINGSINE K3163i Differential Relay Testing Protection Relay Test Support IEC61850

    All-in-One design, weight < 17.5kg;
    High Power & Accuracy with 6x35A & 4x310V analog outputs;
    Complying IEC61850 Sampling Value & GOOSE;
    The ever-expanding test library templates;
    Optional advance functions like energy meter and transducer calibration etc.

    Basic Functions
    Universal Relay Test Applications
    10 Channels (6x35A & 4x310V) outputs, Each output channels are independent and simultaneous control of magnitude, Phase angle and frequency values, able to inject DC, AC sine wave and up to 60x harmonics.
    13 Low-level channels outputs up to 8Vac/10Vdc max.
    100/1000Mbit Fiber port for SMV and GOOSE simulations
    Variable battery simulator, DC 0-350V, 140Watts max.
    Transient play back up to 3KHz
    Fully function KRT software testing modules
    Graphical test modules and templates for testing of various relays
    Quick relay testing facility in Manual mode
    Shot/Search/Check, Point & Click testing
    RIO/XRIO import & export facility
    Switch on to fault test(SOTF)
    Power system model for dynamic testing
    Online Vector display
    Automatic test results assume
    Automatic test report creation
    Inbuilt GPS and IRIG-B sync end-to-end testing
    Anti-clipping detect, Wrong wiring connect alarm and self-protect, overload and overheat protection
    3-Years guarantee of free repair and life-long maintenance
    Lightweight, <18Kg
    Free software upgrade


    Advance Feature
    Complied IEC61850-9-1, IEC61850-9-2, IEC60044-7/8, etc
    Transducer calibration (0.02 class)
    Energy meter calibration (Mechanical & Electronic meters)


    Type of relays can be tested:
    Items ANSI® No.
    IEC61850 numerical IEDs relay & merge unit
    Distance protection relay 21
    Synchronising or synchronism-check relays 25
    Undervoltage relays 27
    Directional Power relays 32
    Undercurrent or underpower relays 37
    Negative sequence overcurrent relays 46
    Overcurrent/ground fault relays 50
    Inverse time overcurrent/ground fault relays 51
    Power factor relays 55
    Overvoltage relays 59
    Voltage or current balance relays 60
    Directional overcurrent relays 67
    Directional ground fault relays 67N
    DC overcurrent relays 76
    Phase-angle measuring or out-of-step protection relays 78
    Automatic reclosing devices 79
    Frequency relays 81
    Motor overload protection relays 86
    Differential protection relays 87
    Directional voltage relays 91
    Voltage and power directional relays 92
    Tripping relays 94
    Voltage regulating relays
    Overimpedance relays, Z>
    Underimpedance relays, Z
    Time-delay relays

    Voltage Outputs
    Output Range & Power 4×310 V ac (L-N) 124 VA max each
    3×350 V dc (L-N) 140 W max each
    Accuracy ±2mV @ <2V ac
    <0.015%Rd+0.005Rg Typ. @ 2~310V ac
    <0.04%Rd+0.01Rg Guar. @ 2~310V ac
    ±10mV @ <5V dc
    ±0.5% @ ≥5V dc
    Voltage Range Range I : 30V
    Range II : 310V
    Automatic Range
    DC Offset <20mV Typ./ <100mV Guar
    Resolution 1mV
    Distortion <0.015%Typ. / <0.05% Guar.
    Current Outputs
    Output Range & Power 6×35A ac (L-N) 480 VA max each
    70A ac (2L-N) 850 VA max each
    1×100A ac (6L-N) 1200 VA max
    3×20A dc (L-N) 300W max each
    Accuracy ±1mA @ <0.5A ac
    <0.02%Rd+0.01Rg Typ. @ 0.5A~35A ac
    <0.05%Rd+0.02Rg Guar. @ 0.5A~35A ac
    ±5mA @ <1A dc
    ±0.5% @ ≥1A dc
    Current Range Range I: 3A
    Range II: 35A
    Automatic Range
    DC Offset <3mA Typ./ <10mA Guar
    Resolution 1mA
    Distortion <0.025%Typ. / <0.07% Guar.
    Low-Level Output
    Quantity 13 Channels, 16 pin combination female socket
    Voltage Outputs Range AC 0~8V, DC 0~10V
    Current Outputs Range Nominal 2mA, 10mA max transient
    Output Power ≥0.5VA
    Accuracy (0.01~0.8 Vrms):<0.05% Typ. / <0.1% Guar.
    (0.8~8 Vrms): <0.02% Typ. / <0.05% Guar.
    Resolution 0.25mV
    Distortion (THD%) <0.05% Typ. / <0.1% Guar.
    Frequency Range 0~3000KHz
    DC Offset <0.15mV Typ. / <1.5mV Guar.
    Frequency & Phase Angle
    Frequency Range DC~1KHz, 3KHz transient
    Frequency Accuracy ±0.5ppm
    Frequency Resolution 0.001 Hz
    Phase Range -360°~360°
    Phase Accuracy <0.02° Typ. / <0.1° Guar. 50/60Hz
    Phase Resolution 0.001°
    Aux. DC Voltage Source (Battery simulator)
    Range 0~350V @ 140W max
    Accuracy 0.5%Rg Guar.
    Binary Input
    Quantity 8pairs
    Type wet/dry, measurement
    Threshold 10~600Vdc or potential free, Programmable
    Time resolution 10us
    Sampling Rate 10KHz
    Debounce time 0~25ms (Software Controlled)
    Time range Infinite
    Time errors ±1ms @ 1s, ±0.1% @ >1s
    Galvanic isolation 4 isolated with each 2 pairs
    Binary Output (Relay Type)
    Quantity 4pairs
    Type Potential free relay contacts, software controlled
    Break Capacity AC Vmax: 400Vac / Imax:8A / Pmax:2500VA
    Break Capacity DC Vmax: 300Vdc / Imax:5A / Pmax:150W
    Binary Output (Semiconductor Type)
    Quantity 4pairs
    Type: Open-collector, Combination type female
    Break Capacity DC 5~15Vdc / 5mA, 10mA max
    AC not permit
    Response time: 100us
    Synchronization
    Synchronization Mode  GPS, SMA type antenna connector
    IRIG-B (Optical fiber, FT3 type)
    Power supply & Environment
    Nominal Input Voltage 100~240Vac
    Permissible Input Voltage 85~260Vac, 125~350VDC
    Nominal Frequency 50/60Hz
    Permissible Frequency 45Hz~65Hz
    Power Consumption 1500 VA max
    Connection Type Standard AC socket 60320
    Operating Temperature -10℃~55℃
    Storage Temperature -20℃~70℃
    Humidity <95%RH, non-condensing
    Others
    PC Connection RJ45 Ethernet, 10/100M
    Grounding Terminal 4mm banana socket
    Weight 17.5 Kg
    Dimensions(W x D x H)

    468×375×164(mm)

    (Optional Modules)

    IEC61850 functions:

    Fully complying IEC61850 Sampling value and GOOSE; (IEC61850-9-1, IEC61850-9-2/(LE), IEC60044-7/8)
    Able to simultaneously output sampling value and analog signals, or subscriber and publish GOOSE message and relay contact binary I/O function.
    Up to 36 sampling value channels can be mapped.
    IEC61850 Fiber & GOOSE Ethernet Ports (Optional Function)
    Fiber Ports 2 x 100Base-FX Full Duplex, LC type
    (Optional to 10/100Mbit, Ethernet RJ45 type)
    Fiber Type 62.5/125um (Multiple optical fiber, Orange Red)
    Wavelength 1310nm
    Transmit Distance >1Km
    Indicator Spd Green(light): Valid connection
    Link/Act Yellow(Blinking): Data exchanging
    Note: Hardware is ready, to be active
    Transducer Calibration Function:
    DC Measurement Input Hardware is ready, to be active
    Voltage Input Range 0~±10V dc
    Max Input ±11V dc
    Accuracy <0.05% rg Typ. <0.1% rg Guar.
    Input Impedance 1M ohm
    Current Input Range 0~±1mA / 1~±20mA, auto range
    Max Input 600mA
    Accuracy <0.05% rg Typ. <0.1% rg Guar.
    Input Impedance 15 ohm
    Energy Meter Calibration Function:
    Energy Meter Calibration Hardware is ready, to be active
    Sensor Usage Mechanical meters / Electronic meters
    Sensor Output High lever:>4.5V, Low level:<0.2V
    Pulse Input 1 pulse input port, 5Vdc high level valid only.
    Pulse Range 500KHz pulse input Max.
    Pulse Output 1 Transistor output, Open-collector, 5Vdc/5mA

    Model Current Outputs Voltage Outputs Optional
    K3166i 6×35A @ 450VA max
    70A @ 850VA max
    7×310V @ 90VA max
    IEC61850 SV
    IEC61850 GOOSE
    Energy meter cal.
    Transducer cal.
    K3163i 6×35A @ 450VA max
    70A @ 850VA max
    4×310V @ 124VA max
    K3130i 3×35A @ 450VA max 4×310V @ 124VA max
